IEEE-488 (GPIB) Demo for the EC1X, EC127, EC1.3W, PC1000, PC100, PC100-2, TC02

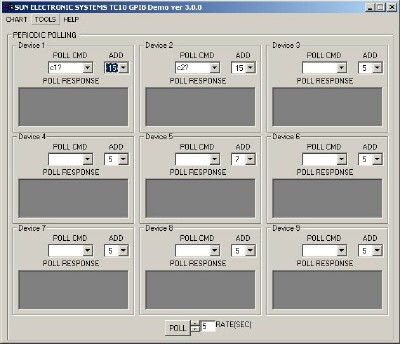

chartGPIB demoThis IEEE-488 application can be used as a tool for communicating and controlling multiple chambers and controllers through an IEEE-488 (GPIB) interface. It allows the user to create, edit, upload, download and save to disk local programs. The application can periodically poll the chamber/controller for temperature, set point data etc. This data can then be charted using this application or saved onto the user's PC for analyses, charting etc. with the software of their choice.

Download:

EC1X, EC127, EC1.3W, PC1000,PC100,PC100-2, TC02

IEEE-488 (GPIB) Demo for the EC0X and TC01

This IEEE-488 application can be used as a tool for communicating and controlling multiple chambers and controllers through an IEEE-488 (GPIB) interface. It allows the user to create, edit, upload, download and save to disk SCAN TEMP (set point) and SCAN TIME (wait time) profiles. The application can periodically poll the chamber/controller for temperature and set point data. This data can then be charted using this application or saved onto the user's PC for analyses, charting etc. with the software of their choice.

Download:

EC0X, TC01

GPIB DEMO REQUIREMENTS:
  • PC running Windows 9x, NT, 2000, XP, Win 7
  • National Instrument IEEE 488 (GPIB) card, driver, GPIB cable(s).
